Packaged Steam Boiler
Product Details:
X
Product Description

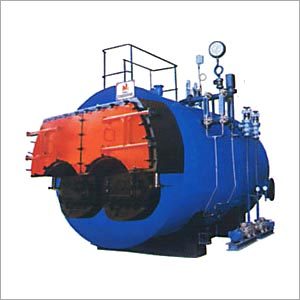

Packaged Steam Boiler
We deal in Packaged steam boiler Type Max Series.
MAXITHERM is a horizontal, three pass, smoke tube boiler in fully wetback construction, confirming to IBR.
The combustion chamber (furnace) forms the first pass in which the fuel is atomized, combusted and radiant heat transmitted to the water contained in the shell, submerging the furnace, reversing camber and smoke tubes. The hot flue gases are diverted through the internal reversing chamber (wetback) and subsequently to the second and third pass of tubes transferring the convective heat to the boiler.
The boiler is of Class 1 fusion-welded construction manufactured from boiler quality .plates and tubes with radiographic and destructive test carried out at the welded joints.
Hydraulic and other tests are conducted in accordance with IBR.
Burner & Boiler Controls
The boiler is provided with automatic pressure atomized spill return type oil burner.
The burner programmer ensures an automatically controlled, programmed for start-up, firing, shutdown and restart of the boiler based on measurement of boiler pressure. Necessary interlocks are provided for safe operation.
The water level is controlled through Mobrey type dual controller which is a magnetically operated water level controller of a vertically type in a float cahmber and is externally mounted on the boiler. One switch of the dual controller operates the electric feed pump on/off. The second switch cuts out or locks out the burner in case of low level of water and at the same time operates a low level alarm.
The boiler is provided with one high pressure cutout switch and one additional pressure switch for high/low, or continuous modulation of operation.
Salient Features
MAXITHERM has adopted the modern concept of accentrically located furnace with smoke tubes arranged in a staggered manner on one side f the furnace.
The front and rear tube furnace are accessible for inspection and maintenance.
Generously proportioned furnace with large furnace volume ensuring;
Maximum possible absorption of radiant heat.
Avoidance of flame impeachment on the rear of the furnace.
Prevention of clinker formation.
Enhanced life of furnace.
Adequate water and steam spaces, which enable the boiler to meet fluctuating load with out appreciable fall in the operating pressure. This also ensures prevention of priming, foaming and carryover of the boiler water into steam pipelines furthering steam with high dryness fraction.
The eccentrically located furnace has the following advantages
Undisturbed and well-defined circulatory distribution of water within the boiler.
Easy accessibility to the outer surface of furnace for inspection and scale removal.
Possibility of providing single smoke box, which when opened makes all smoke tubes accessible for cleaning.
The burner is mounted directly in font of the furnace, facilitating opening of the front door to clean the tubes without disturbing the burner.
| Type | 3 Pass Fully Wet Back IBR Steam Boiler |
| Capacity | 1000 kg / hr to 25000 kg / hr F & A100o C |
| Working | Std.10.54 kg / cm2 (g) / 14.5kg / cm2 (g) / |
| Fuel | LDO / FO / GAS / Duel Fuel |
| Thermal Efficiency | 88 + 2 % on NCV of Fuel 92 + 2 % on NVC |
| Heat Recovery Unit | Water Pre Heater / Air Pre Heater |
| Burner | Fully Automatic Pressure jet with High - Low / |
ABOVE BOILERS ARE MANUFACTURED AS PER UPDATED IBR REGULATIONS.
